| App temperatur bundet liste |
| Materialeee | Middel temperatur℃ | Materialeee | Middel temperatur℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~95℃ | PVC-U | -5℃~45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~120℃ | PPH | -20℃~110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Produktets strukturelle egenskaber |
1. Tætningsmembranen er lavet af F46 eller PFA, med en foldeholdbarhed på ≥ 120.000 gange og korrosionsbestandighed sammenlignelig med F4.
2. Løftemekanismen af skruetypen giver lavt åbnings- og lukkemoment og fremragende stabilitet.

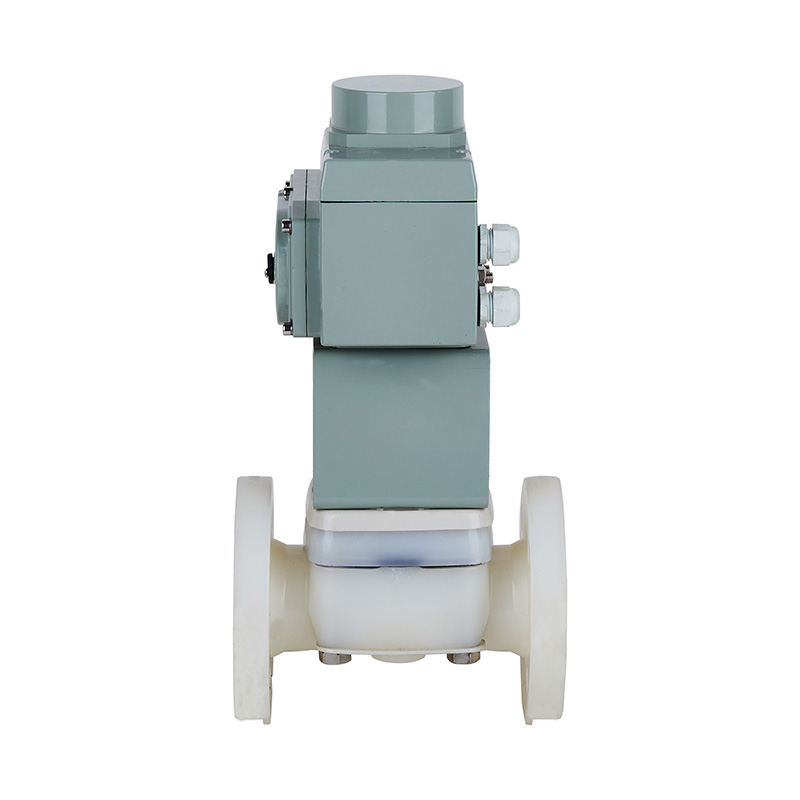

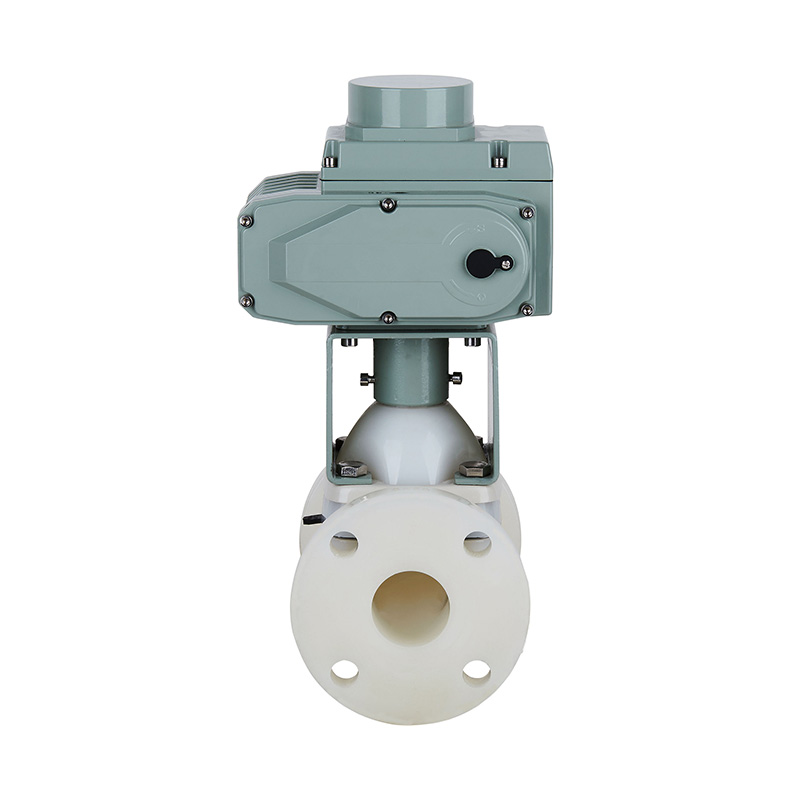

3. Aktuatoren kan fjernstyres via en computer eller kontrolcenter, der styrer flow og flow af mediet ved at åbne og lukke ventilen. Dette giver større bekvemmelighed og hastighed, reducerer arbejdsomkostninger og sikrer sikkerheden for arbejdere på stedet.
| Del Materiale Tabel |
| Nej. | Navn | Materialeee | Antal. | |||||||||||||||||||||||||
| 1 | Elektrisk aktuator | Aluminiumslegering | 1 | |||||||||||||||||||||||||
| 2 | Plejlstang | Stål | 2 | |||||||||||||||||||||||||
| 3 | Elektrisk/pneumatisk aktuatorbeslag | Jern | 1 | |||||||||||||||||||||||||
| 4 | Tilslutningsstift | Stål | 1 | |||||||||||||||||||||||||
| 5 | Motorhjelm | PPH, PVC-C, PVC-U, PVDF, FRPP | 1 | |||||||||||||||||||||||||
| 6 | Åg nød | SS stål, Kobber | 1 | |||||||||||||||||||||||||
| 7 | plade | Q345, SS stål | 2 | |||||||||||||||||||||||||
| 8 | Skrue | Stål, rustfrit stål | 4 | |||||||||||||||||||||||||
| 9 | plade | Q345, SS stål | 2 | |||||||||||||||||||||||||
| 10 | Krop | PPH, PVC-C, PVC-U, PVDF, FRPP | 1 | |||||||||||||||||||||||||
| 11 | Stængel | Stål, rustfrit stål | 1 | |||||||||||||||||||||||||
| 12 | Møtrik Cap | Stål, rustfrit stål | 4 | |||||||||||||||||||||||||
| 13 | Ventilplade | PPH, PVC-C, PVC-U FRPP,PVDF/støbejern | 1 | |||||||||||||||||||||||||
| 14 | Flim | EPDM, FPM | 1 | |||||||||||||||||||||||||
| 15 | Diafragma | F46.PFA.PTFE | 1 | |||||||||||||||||||||||||
| Dimensionsliste |
| Specifikation | D | d | L | b | n-Φ | |||||||||||||||||||||||
| 15 | 95 | 65 | 125 | 14 | 4-Φ14 | |||||||||||||||||||||||
| 20 | 105 | 75 | 135 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 25 | 115 | 85 | 145 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 32 | 135 | 100 | 160 | 18 | 4-Φ18 | |||||||||||||||||||||||
| 40 | 145 | 110 | 180 | 20 | 4-Φ18 | |||||||||||||||||||||||
| 50 | 160 | 125 | 210 | 22 | 4-Φ18 | |||||||||||||||||||||||
| 65 | 180 | 145 | 250 | 24 | 4-Φ18 | |||||||||||||||||||||||
| 80 | 195 | 160 | 300 | 24 | 8-Φ18 | |||||||||||||||||||||||
| 100 | 225 | 180 | 350 | 28 | 8-Φ18 | |||||||||||||||||||||||
| 125 | 245 | 210 | 400 | 30 | 8-18 | |||||||||||||||||||||||
| 150 | 280 | 240 | 455 | 30 | 8-Φ23x27 | |||||||||||||||||||||||
| 200 | 335 | 295 | 570 | 40 | 8-Φ22 | |||||||||||||||||||||||
| 250 | 390 | 350 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
| 300 | 445 | 400 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
